Grove B5

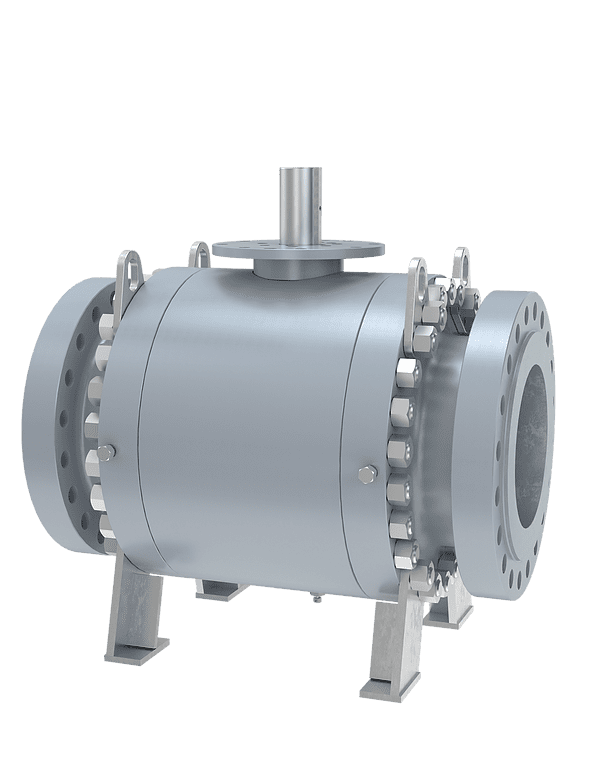

Grove B5 image

Overview

Cameron GROVE side-entry ball valves are manufactured in a wide range of diameters and pressure classes. The valves are specified for transmission pipelines, pumping, compression and reinjection units, offshore platforms, onshore terminals, pig traps, measuring stations, and surge-relief skids. Split-body construction allows the use of forged materials in various grades of carbon steel, stainless steel, and high alloys, thus complying with the most severe service conditions.

Standard Features

  • Size range: 6” to 60”
  • ASME classes: 150 to 1500
  • Trunnion-mounted design
  • Double-barrier stem seals
  • Stem separate from the ball
  • Anti-blowout stem design
  • Stem emergency grease fitting
  • Low-friction, metal-backed, self-lubricating PTFE sleeve bearings and thrust washers
  • Primary metal-to-metal seal and protected secondary O-ring seal
  • Double-piston effect (DPE) seat rings (double-sealing barrier in both directions)
  • Double block-and-bleed capability
  • Pressure-relief valve in the body cavity to prevent pressure lock
  • Sealant injection system for emergency seat sealing
  • Factory-positioned external stops
  • Integral stop in the adapter plate for a permanent reference to open and closed positions
  • Electroless nickel coating on pressure-controlling parts and stem
  • CE marking (PED Directive)

Optional Features

  • Triple-barrier stem seals
  • Self-relieving seat rings
  • Plastic polymer insert for seat sealing
  • PTFE spring-energized lip seals for seat and stem sealing
  • Metal-to-metal seat sealing
  • SS or INCONEL®* 625 overlay on sealing areas
  • Explosive decompression-resistant seals (Standard for Class 600 and higher)
  • Antistatic device
  • Fire-safe in accordance with API 607

Standards Compliance

  • Fire-safe in accordance with API 6FA and BS 6755 Part 2

CATALOG

grovevalves
B4 D M56 A Installation and ordinary maintenance instructions 7255495 01 Page 01 2
